Phoenix Wheel 7x50MM

$399.00

SKU: PW7X50 Category:



Product description:

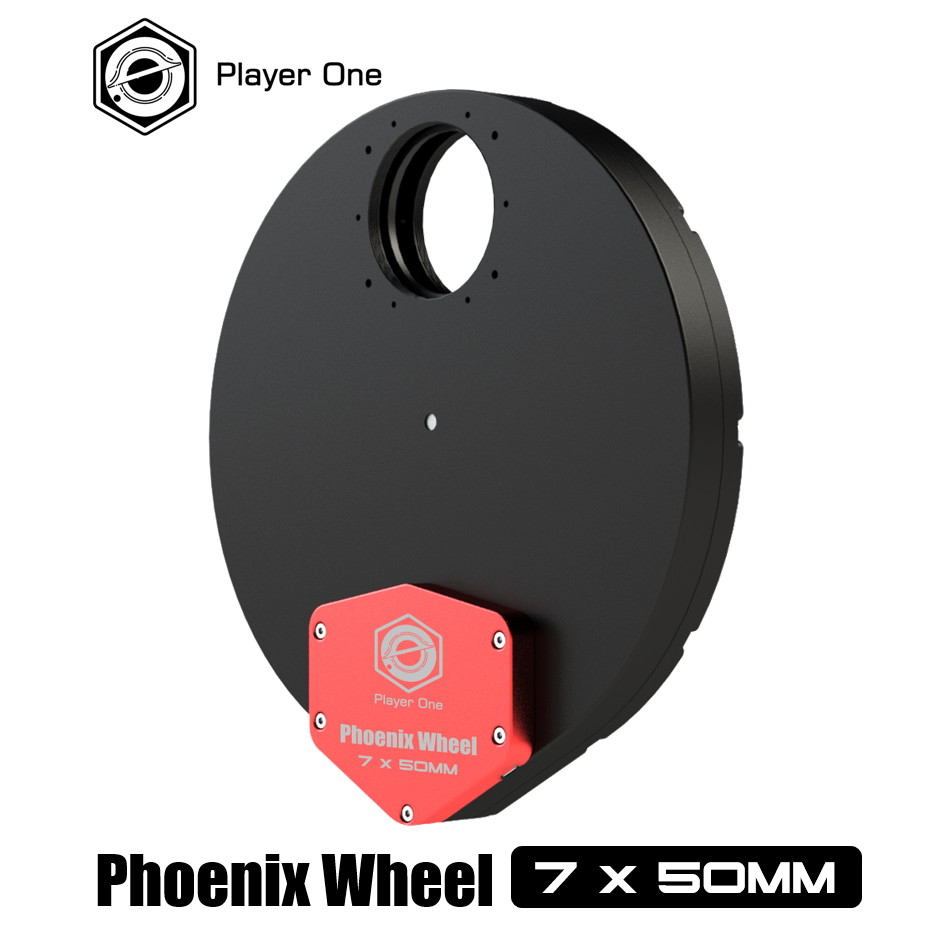

Phoenix Filter Wheel 7x50MM

Support model:Poseidon series, Zeus series, Artemis series, Ares series, Uranus PRO, Apollo PRO

Body Threads: M54*0.75 on both sides

Filter size: 50mm unmounted filter is required

Material：Aluminum 6061-T6

Optical Length: 20mm



Hall Sensing Technology

Traditional infrared sensor scanning positioning hole to locate position, this way positioning accuracy depends on the size of the positioning hole, the smaller the hole, the higher the accuracy, but the diameter of the hole must have at least 1mm diameter, otherwise it is difficult to manufacture.  But if use magnet on filter plate, Hall sensor will detect the center of the magnet, the positioning accuracy is better than infrared sensor.

Hybrid stepping motor

This super thin hybrid stepping motor can provide very smooth rotation, almost no vibration when change the filter position.

Type-C data port

Using USB Type-C port can reduce the thickness of red piece.

Support filters

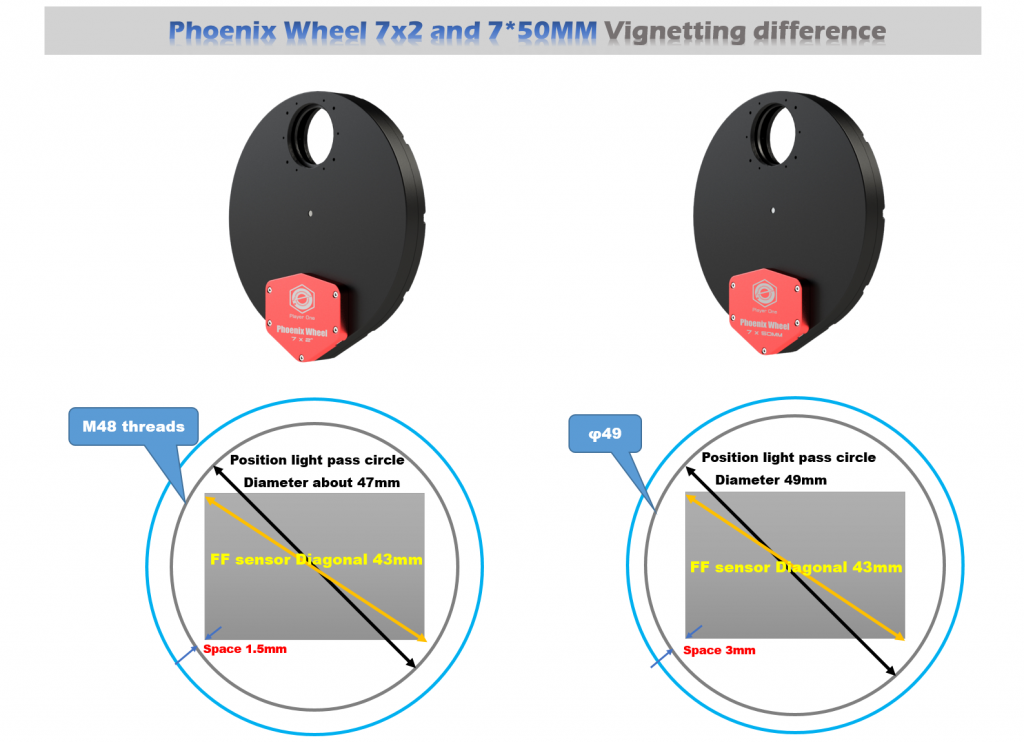

Filter Positions of Phoenix Wheel 7x50mm support 50mm unmounted filter. Clear path diameter is 49mm which is bigger than 7×2″ wheel, can give less vignetting when using full-frame cameras.

Mechanical Drawing

Package List
