Planet Series

The naming of Player One Astronomy cameras is unique. We name the planetary cameras after planets (Mercury, Venus, Mars, Jupiter, Saturn, Uranus, and Neptune. Earth is not included). The size of each planet to a certain extent represents the size of camera sensors. We will name Saturn with a 1-inch sensor camera, and for Mars, we will name it with a 1/2.8 inch sensor camera. All names will be engraved on the housing of the cameras.

Specification

DDR3 256MB buffer | DPS tech | Sensor tilt plate | Rolling shutter | USB3.0

Sensor

  • IMX533 mono
  • IMX533 color
  • IMX585 color
  • IMX464 color
  • IMX178 mono
  • IMX178 color
  • IMX662 color
  • IMX290 mono
  • IMX462 color

Format

  • 11.31×11.31mm (1" )
  • 11.31×11.31mm (1" )
  • 11.2×6.3mm (1/1.2")
  • 7.9×4.5mm (1/1.8")
  • 7.4×5.0mm (1/1.8")
  • 7.4×5.0mm (1/1.8")
  • 5.6×3.2mm (1/2.8")
  • 5.6mm×3.2mm (1/2.8")
  • 5.6mm×3.2mm (1/2.8")

Resolution

  • 3008×3008
  • 3008×3008
  • 3856×2180
  • 2712×1538
  • 3096×2078
  • 3096×2078
  • 1936×1100
  • 1944×1096
  • 1944×1096

Pixel

  • 3.76μm
  • 3.76μm
  • 2.9μm
  • 2.9μm
  • 2.4μm
  • 2.4μm
  • 2.9μm
  • 2.9μm
  • 2.9μm

FPS

  • 43FPS
  • 43FPS
  • 47FPS
  • 93FPS
  • 60FPS
  • 60FPS
  • 108FPS
  • 136FPS
  • 136FPS

Noise

  • 4.46-1e
  • 4.46-1e
  • 6.5-0.7e
  • 2.9~0.7e
  • 2.2~1.3e
  • 2.2~1.3e
  • 6.7~0.7e
  • 3.2~0.98e
  • 3.2~0.98e

QE

  • ≈91%
  • ≈80%
  • ≈91%
  • ≈90%
  • ≈80%
  • ≈80%
  • ≈91%
  • ≈80%
  • ≈80%

FW

  • 73k e
  • 73k e
  • 38.8k e
  • 12k e
  • 15k e
  • 15k e
  • 54k e
  • 14.6k e
  • 14.6k e

ADC

  • 14 bit
  • 14 bit
  • 12 bit
  • 12 bit
  • 14 bit
  • 14 bit
  • 12 bit
  • 12 bit
  • 12 bit

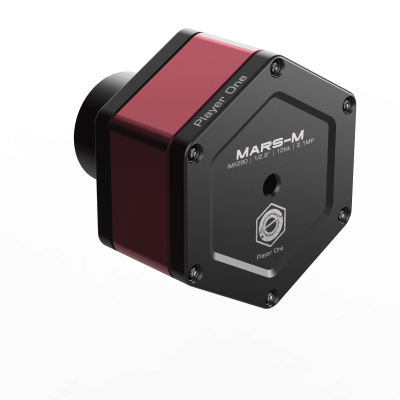

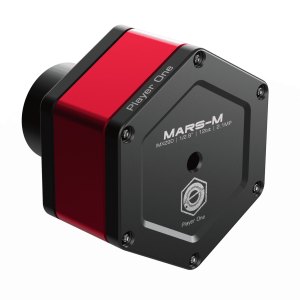

1/2.8"

Mars Series

Monochrome

5/5

Release Date: 2020. Dec

IMX290 | 1/2.8" | 2.1MP | 136FPS
12bit ADC
Rolling Shutter
DDR3 256MB buffer
AR Coating

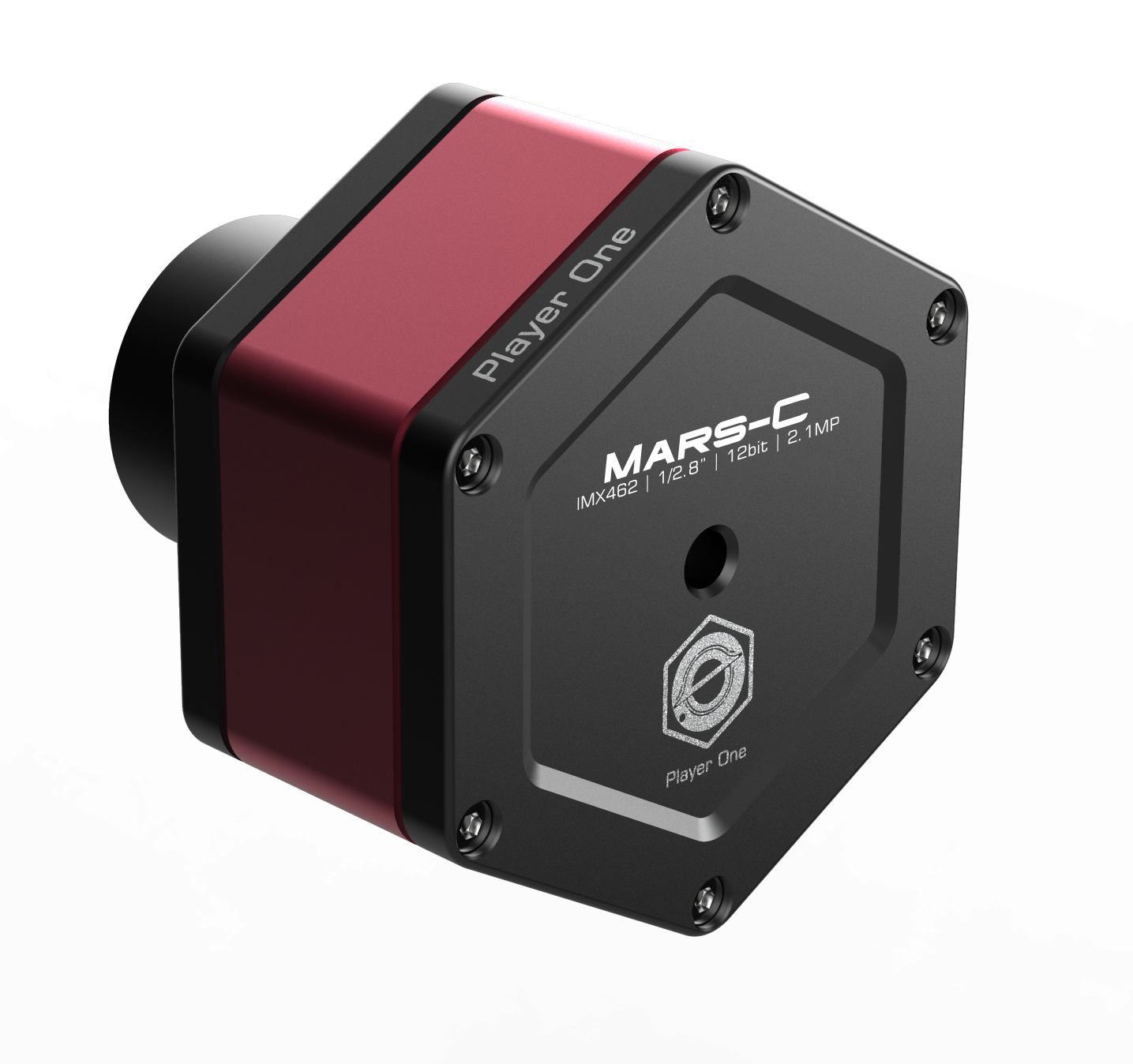

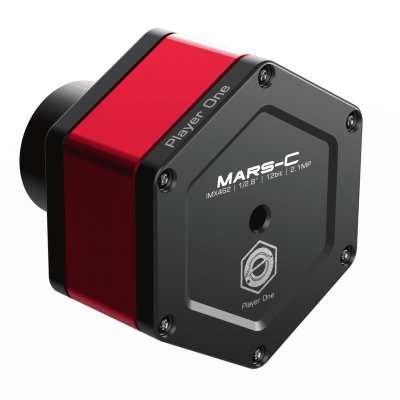

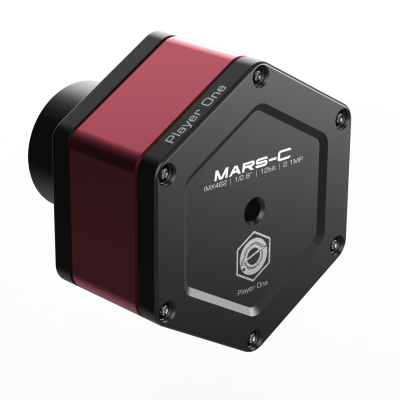

1/2.8"

Mars Series

Color

4.5/5

Release Date: 2020. Dec

IMX462 | 1/2.8" | 2.1MP | 136FPS
12bit ADC
Rolling Shutter
DDR3 256MB buffer
AR Coating

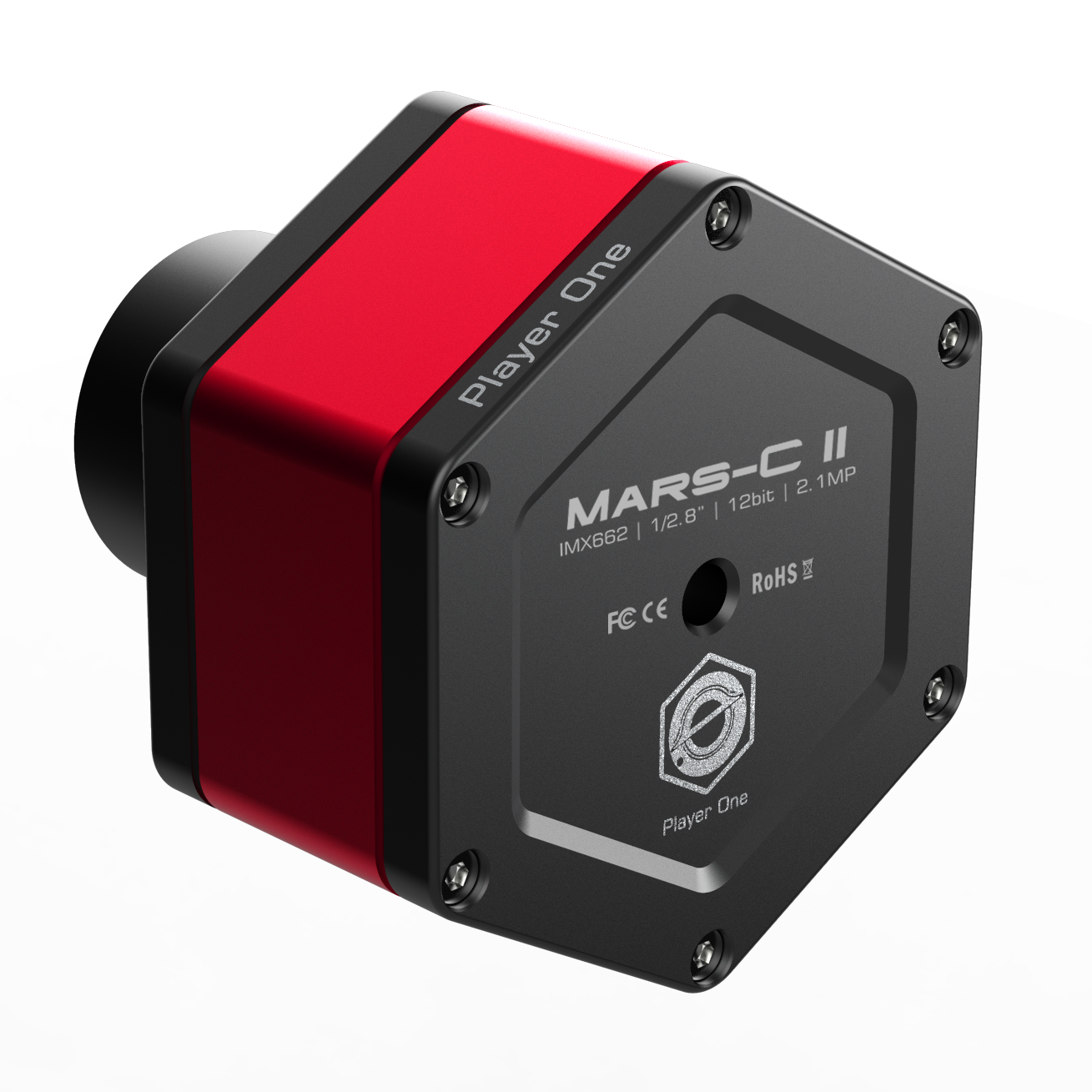

1/2.8"

Mars Series

Color

5/5

Release Date: 2022. April

IMX662 | 1/2.8" | 2.1MP | 108FPS
12bit ADC
Rolling Shutter
DDR3 256MB buffer
AR Coating

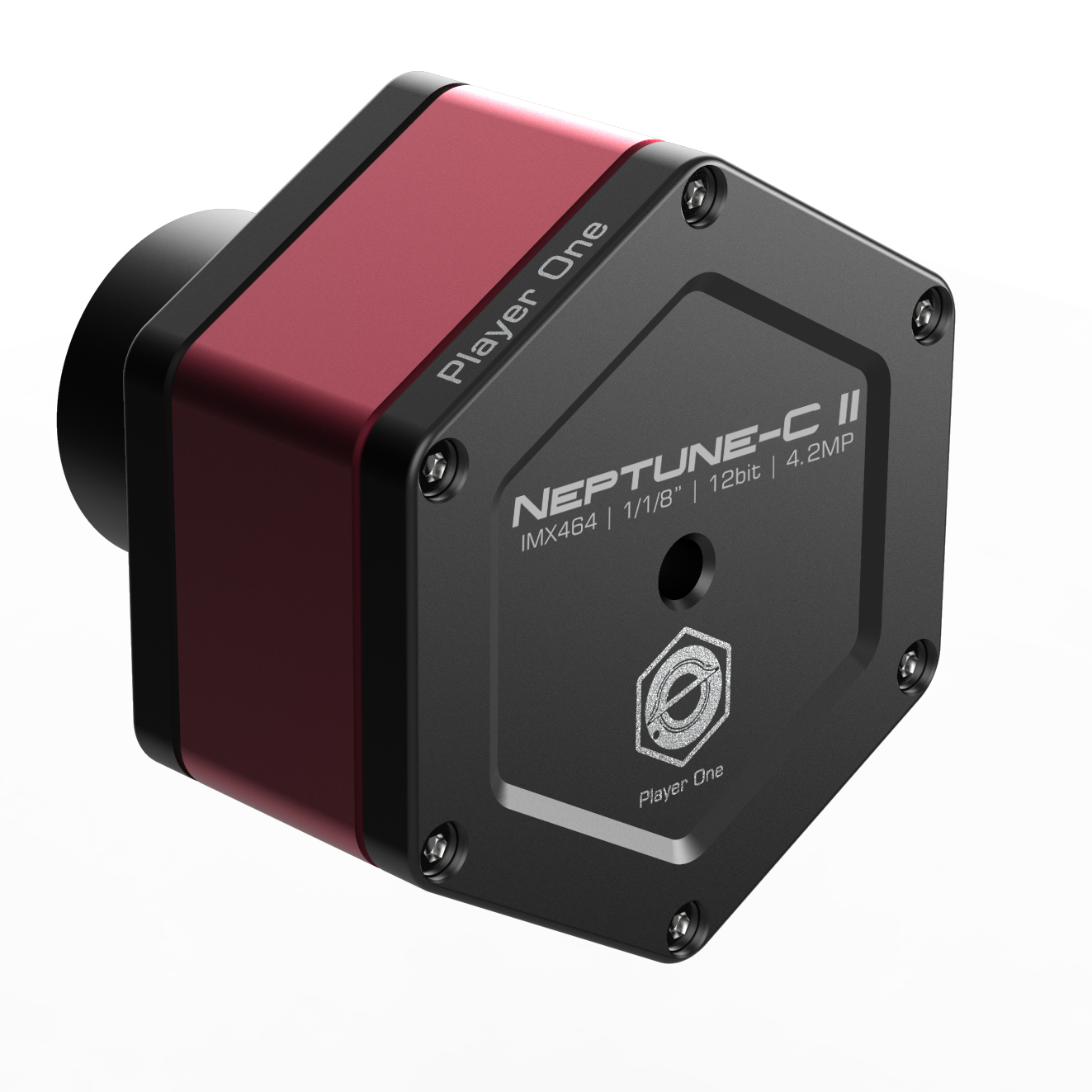

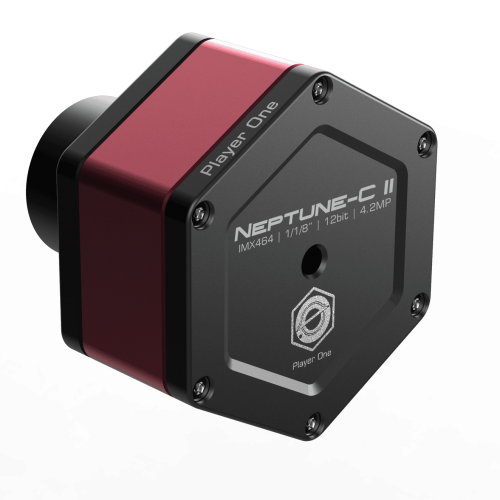

1/1.8"

Neptune Series

Color

5/5

Release Date: 2021. Feb

IMX464 | 1/1.8" | 4.2MP | 93FPS
12bit ADC
Rolling Shutter
DDR3 256MB buffer
AR Coating

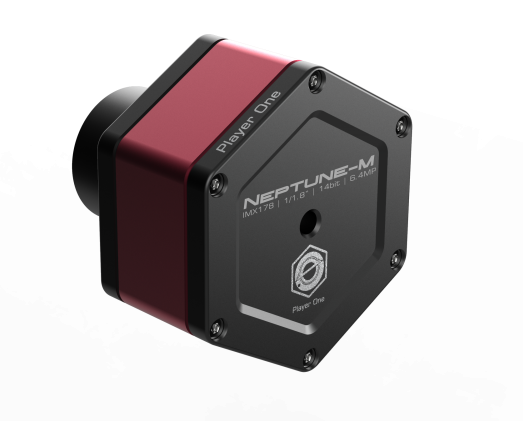

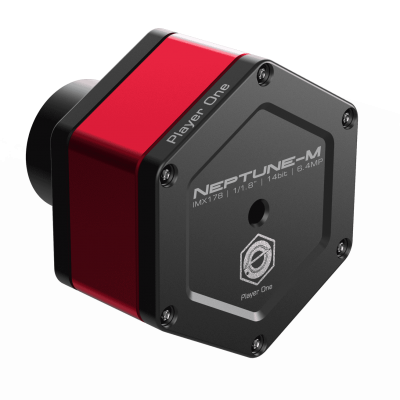

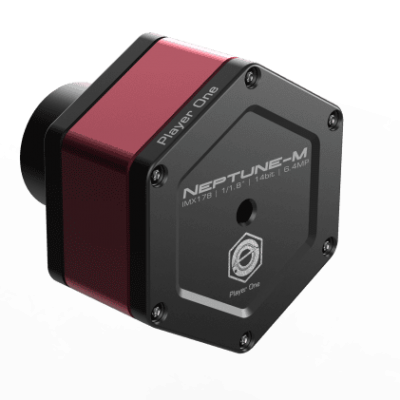

1/1.8"

Neptune Series

Monochrome

5/5

Release Date: 2021. Feb

IMX178 | 1/1.8" | 6.4MP | 60FPS
14bit ADC
Rolling Shutter
DDR3 256MB buffer
AR Coating

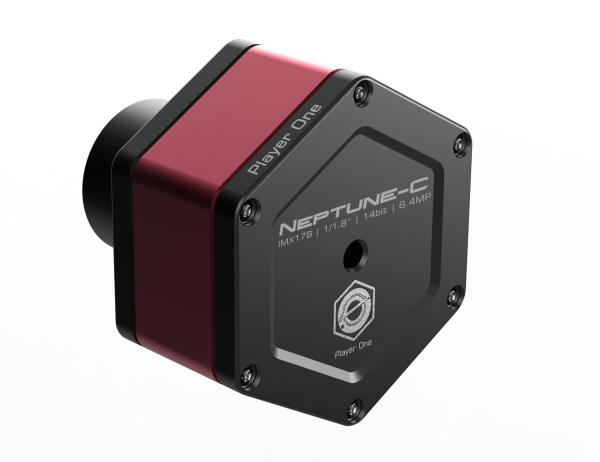

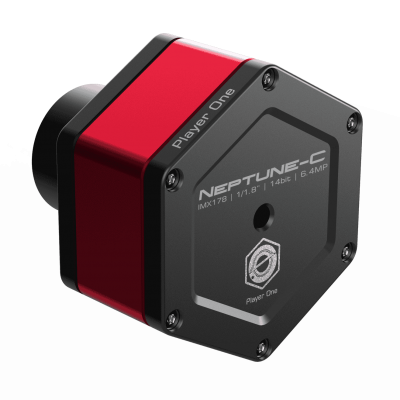

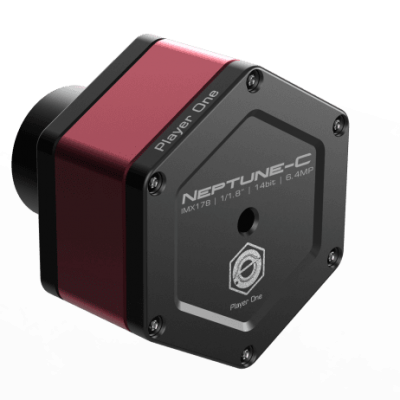

1/1.8"

Neptune Series

Color

4.5/5

Release Date: 2021. Feb

IMX178 | 1/1.8" | 6.4MP | 60FPS
14bit ADC
Rolling Shutter
DDR3 256MB buffer
UV IR-CUT Coating

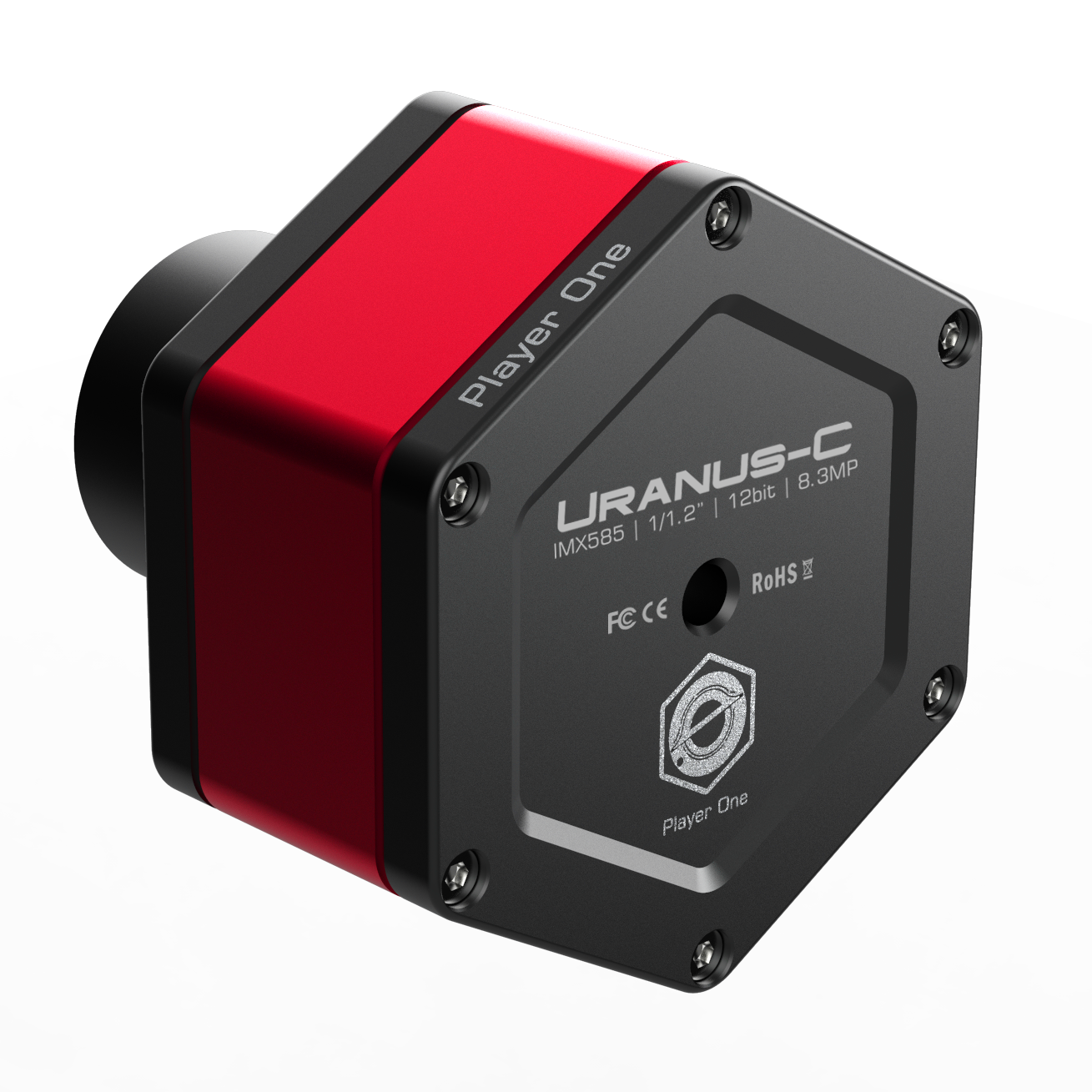

1/1.2"

Uranus Series

Color

5/5

Release Date: 2022. April

IMX585 | 1/1.2" | 8MP | 47FPS
12bit ADC
Rolling Shutter
Non-Amp-Glow
Passive Cooling System
DDR3 256MB buffer
AR Coating

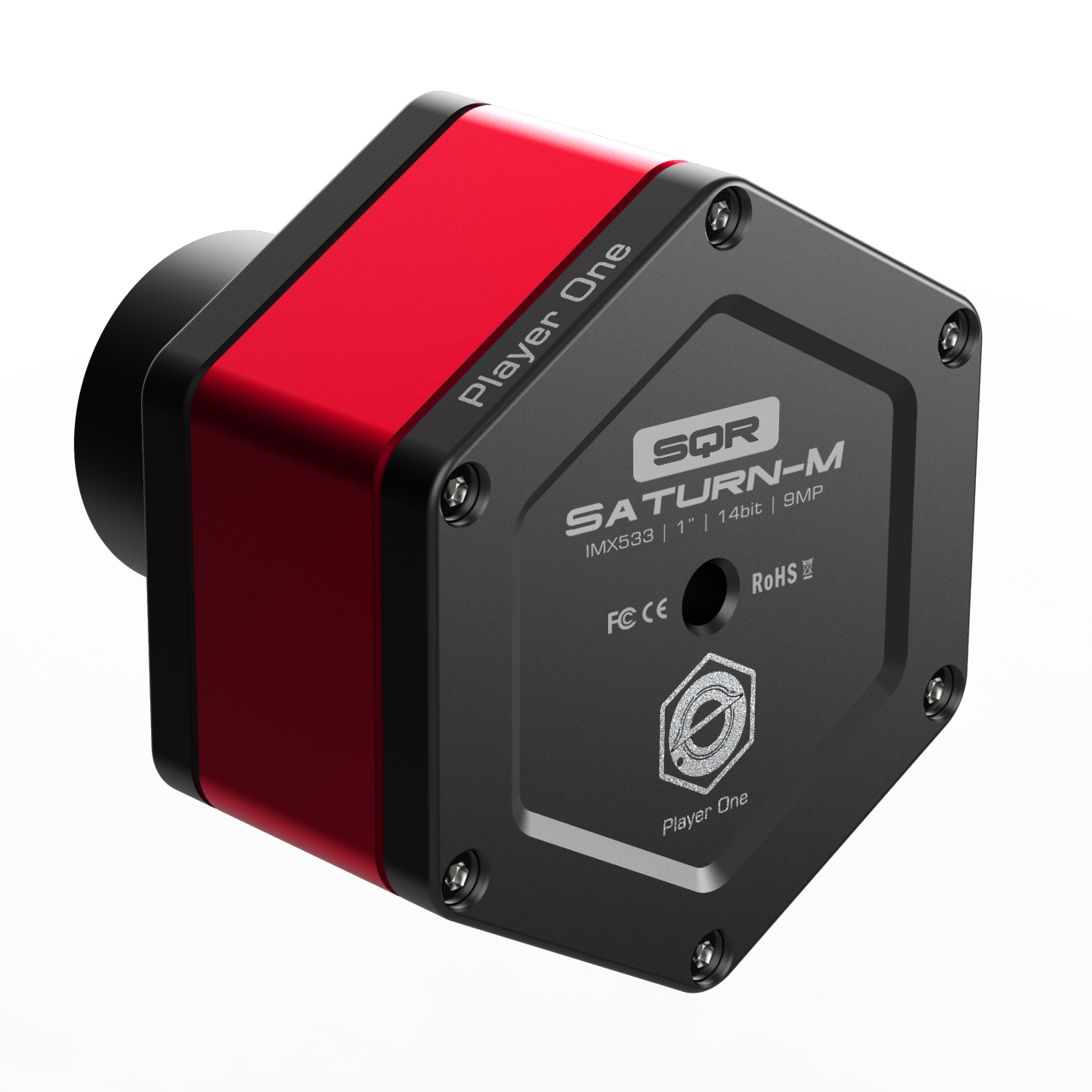

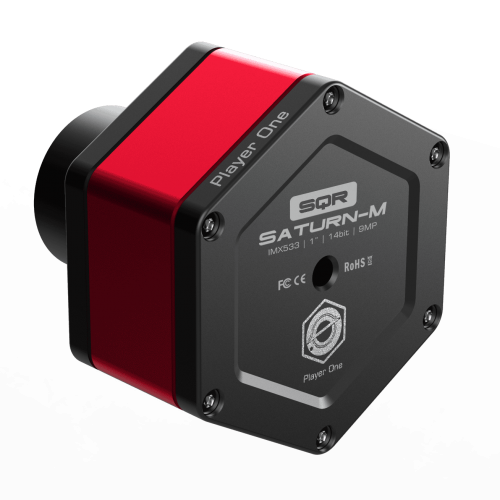

1"

Saturn Series

Monochrome

5/5

Release Date: 2022. June

IMX533 | 1" | 9MP | 43FPS
14bit ADC
Rolling Shutter
Non-Amp-Glow
Passive Cooling System
DDR3 256MB buffer
AR Coating

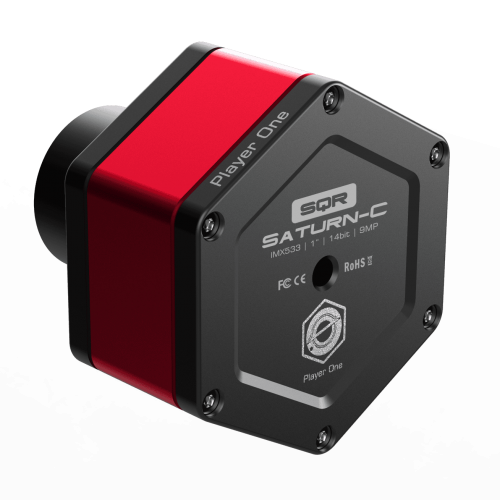

1"

Saturn Series

Color

5/5

Release Date: 2022. June

IMX533 | 1" | 9MP | 43FPS
14bit ADC
Rolling Shutter
Non-Amp-Glow
Passive Cooling System
DDR3 256MB buffer
AR Coating
